1101_0 Phidget IR Distance Sensor Adapter
Product Code:
1101
£8.57
£7.14
The IR Distance Adapter is designed to read Sharp IR distance sensors with a Phidgets Analog Input or VINT Hub port.
Any sharp sensor with a supply voltage of 5V and an output voltage range falling within 0-5V is compatible with this adapter. The cable included with this adapter uses a JST S3B-PH connector, like the sharp sensors below. If your sharp sensor uses a different connector, you'll need to find a matching cable for it.
- 60cm sensor cable included
- 30cm Sharp Sensor Interface cable included
- GP2Y0A21YK (Not Included, but available seperately)
- GP2Y0A02YK0F (Not Included, but available seperately)

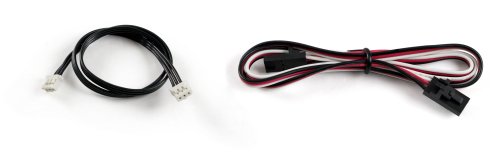

Comes packaged with
- A 30cm Sharp Sensor Interface Cable
- 3002 – 60cm Phidget Cable
Sensor Properties
| Sensor Output Type | Ratiometric |
Electrical Properties
| Supply Voltage Min | 4.8 V DC |
| Supply Voltage Max | 5.3 V DC |
| Current Consumption Max | 3 mA |
| Output Impedance | 1 kΩ |
Physical Properties
| Operating Temperature Min | -25 °C |
| Operating Temperature Max | 85 °C |
